Choosing the wrong type of bathroom vanity can lead to a series of problems, including mismatched vanity mirrors, lighting revisions, and failures to meet ADA requirements. These issues can end up costing thousands of dollars to fix in each room. In commercial projects with dozens or even hundreds of units, these costs can add up significantly.
If you are designers, contractors, and procurement managers who specify vanities on a larger scale for hospitality, healthcare, and multi-family projects. You are in the right place.
In this article, we will introduce the main types of bathroom vanities, including dimensions, material recommendations, and guidance on pairing mirrors.
What Is a Bathroom Vanity?
A bathroom vanity is a cabinet or structure that is used to support a bathroom sink. It usually combines a sink, countertop, and storage into a single fixture, and acts as the functional centerpiece of the bathroom, housing the wash basin and providing counter space and storage for toiletries, towels, and plumbing components.
In commercial projects, the vanity influences three interconnected decisions: counter height, storage configuration, and ADA compliance.
Vanities are categorized by mounting style (freestanding, floating, pedestal, console), basin configuration (undermount, vessel, drop-in), and layout (single sink, double sink, corner).
Today, we will introduce the 9 main types of bathroom vanities.
- Freestanding Vanities
- Floating Vanities
- Pedestal Sink Vanities
- Console Sink Vanities
- Vessel Sink Vanities
- Corner Vanities
- Double Sink Vanities
- Undermount Sink Vanities
- ADA-Compliant Vanities
Also Read: 17 Types of Bathroom Sinks

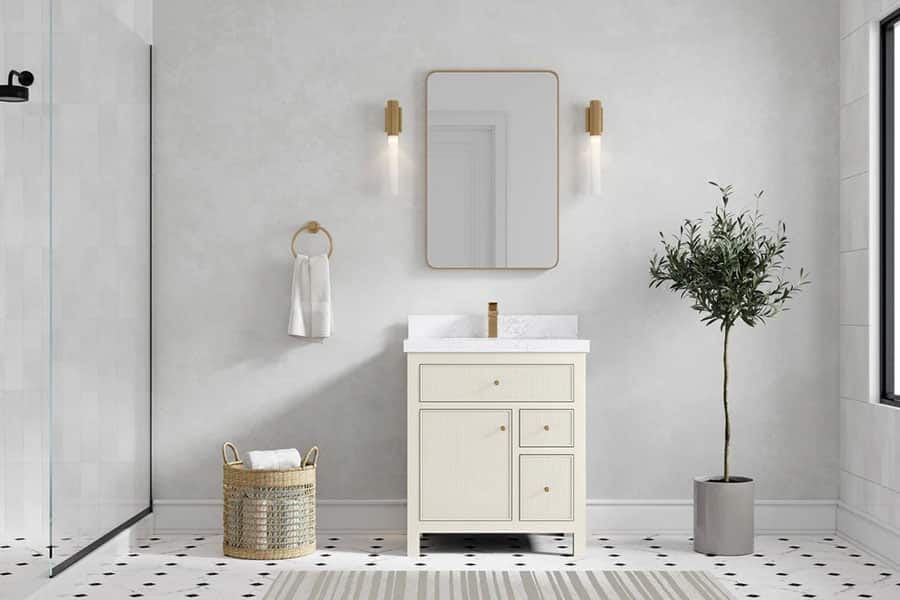

Freestanding Vanities
Freestanding vanities are popular choices for hospitality and multi-family installations for three main reasons: they offer maximum storage, are easy to install, and have predictable lead times. These units rest directly on the floor without requiring wall-mounting hardware, which facilitates quicker turnover during the fit-out process and minimizes coordination issues with structural trades.
In commercial applications, the construction is more important than the aesthetics. Materials such as marine-grade plywood, thermofoil-wrapped MDF, or solid bamboo are preferable because they can withstand the humidity cycles that can ruin particle board within two years. The quality of hardware is also critical. Hotel-grade hinges and drawer slides should be rated for at least 50,000 cycles, and it is beneficial to include full-extension glides and soft-close mechanisms to lessen wear and prevent slamming noises.
A key detail that can differentiate a durable installation from one that fails quickly is moisture sealing at the base. If the area where the cabinet meets the floor is not properly sealed, water infiltration can lead to swelling, delamination, and mold growth. It is essential to specify silicone or foam gasket sealing for every freestanding unit located in wet environments.Pairing mirrors with vanities is straightforward. Choose a mirror that is 2 to 4 inches narrower than the width of the vanity. For example, with a 48-inch freestanding vanity, a 44-inch bathroom mirror will create balanced proportions and leave enough space for sconces on either side.

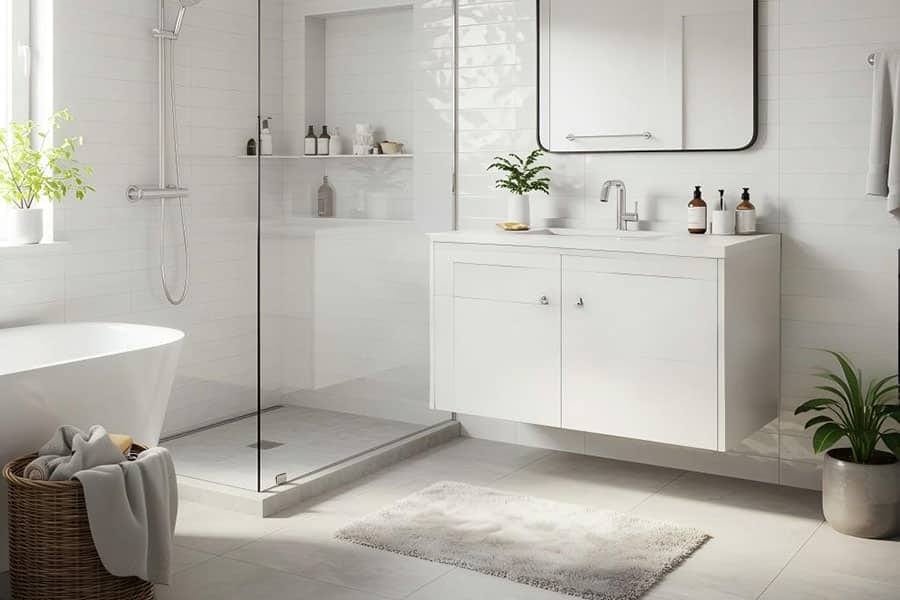

Floating Vanities
Floating vanities offer a clean, contemporary aesthetic that is often specified by designers for boutique hotels, minimalist residences, and Japanese-inspired spa bathrooms. The open floor space beneath these vanities simplifies cleaning and creates the illusion of larger areas in small rooms. However, a common installation failure in commercial settings arises from underestimating the need for proper wall blocking.
To ensure stability, wall blocking requires a 3/4-inch plywood piece that spans the full width of the vanity, with additional inches on each side. This plywood should be installed between the studs, positioned 12 to 36 inches above the finished floor. Commercial floating vanities must support between 250 and 500 pounds, depending on the fixtures. It’s essential to use lag screws or through-bolts for securing the vanity into the blocking, as drywall anchors will fail under load.
It’s important to note that floating vanities sacrifice storage space, as they lack the cabinet volume that freestanding units provide. For projects where storage is essential, consider pairing floating vanities with recessed medicine cabinets or mirrored storage units installed above.
LED mirrors work particularly well with floating vanities. The unobstructed wall space above allows for larger mirror installations, and integrated LED lighting removes the need for separate sconces, keeping the wall clean and the sightline unobstructed.

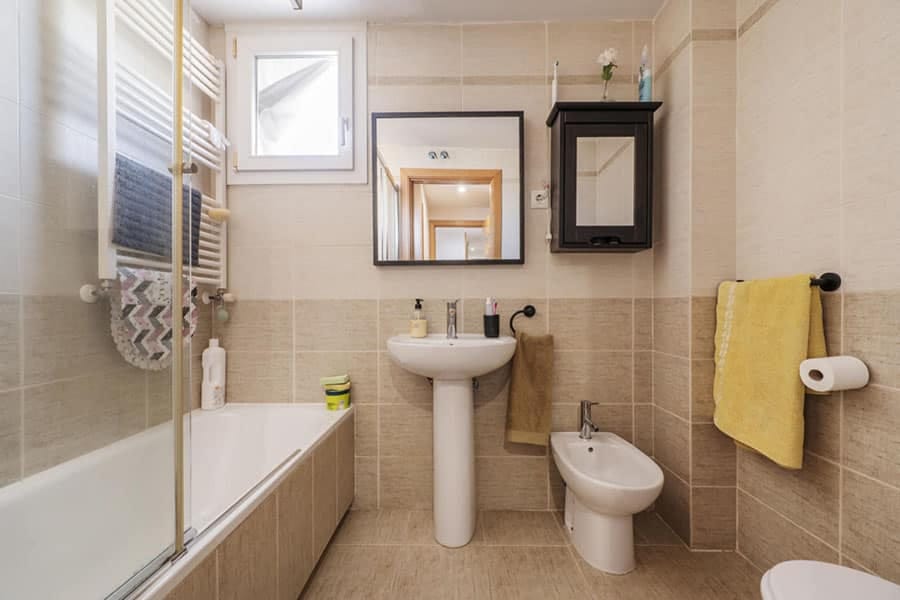

Pedestal Sinks
Pedestal sinks are often regarded as outdated, but this reputation is undeserved. They are an excellent choice for powder rooms, small commercial restrooms, and budget-friendly hospitality projects, especially when storage is provided by separate furniture or built-ins.
The benefits of pedestal sinks are practical: they have a minimal floor footprint, are easy to install, and are cost-effective. A pedestal sink can transform a 20-square-foot closet into a functional half bath without the plumbing complications associated with a full vanity cabinet.
However, there are some clear limitations. Pedestal sinks offer no storage, limited counter space, and traditional designs may not meet ADA (Americans with Disabilities Act) requirements without modifications. Open-front pedestal designs can comply with accessibility standards, but it’s essential to verify the dimensions against ADA guidelines before making a selection.
For a cohesive look, pairing a single framed or LED mirror centered above the pedestal sink creates an effective vanity zone without the need for cabinetry. A 24-by-36-inch mirror is ideal for most pedestal installations and helps maintain balanced proportions in compact areas.

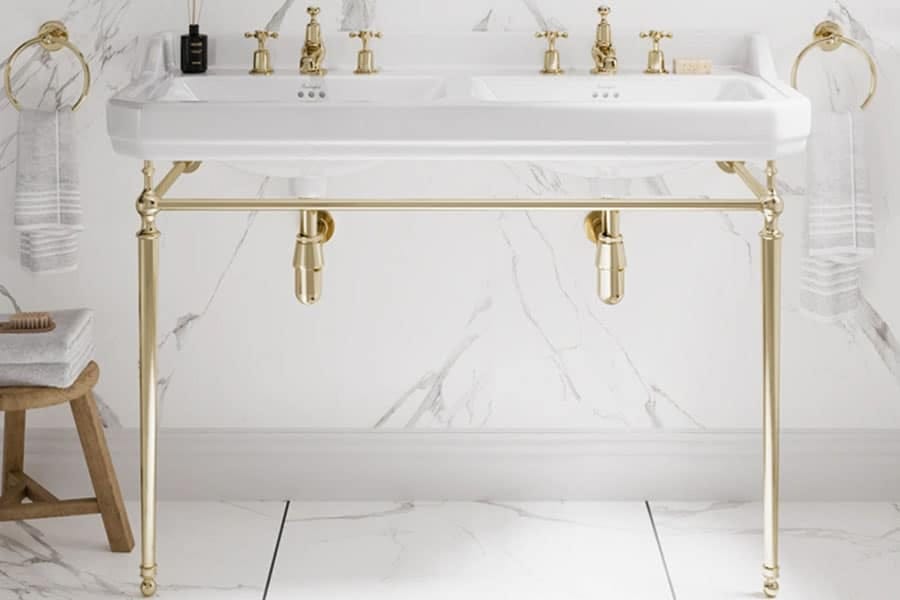

Console Sinks
Console sinks are often the most under-specified type of bathroom vanity in commercial projects. They address a specific design challenge by providing counter space and ADA-compliant knee clearance.
A console sink consists of a countertop and basin that mount to the wall and are supported by two or four legs. This design offers more usable surface area than a pedestal sink, while maintaining an open base that allows for wheelchair access. The exposed plumbing underneath contributes to an industrial aesthetic, making console sinks ideal for boutique hotels, upscale restaurants, and contemporary office restrooms.
However, console sinks do require wider wall space compared to pedestal alternatives, and storage options are limited to decorative baskets placed beneath the open frame. Consequently, for projects where concealed storage is a priority, a console sink may not be the best choice.

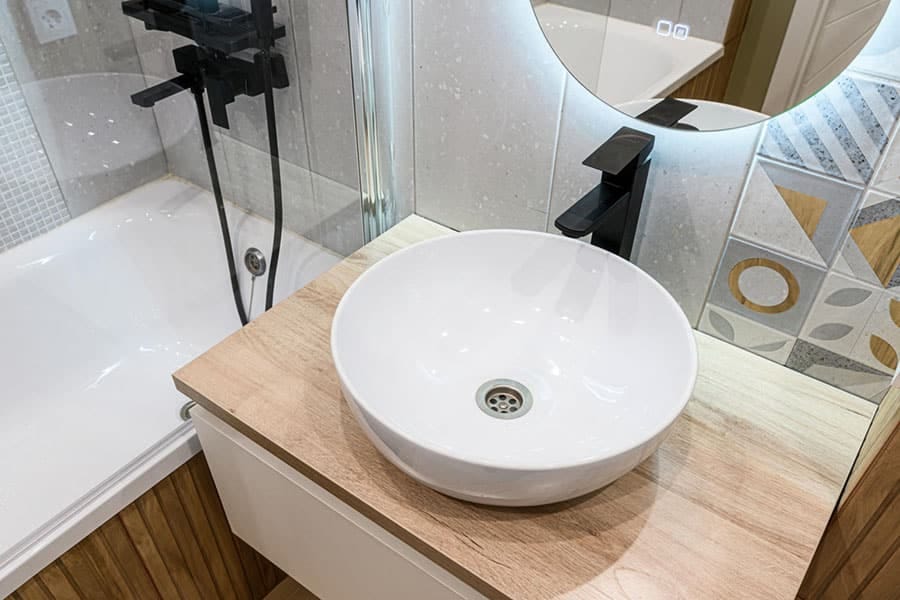

Vessel Sink Vanities
Vessel sinks create a striking visual impact in boutique hotels and upscale restrooms. Bowls made of glass, stone, or ceramic, positioned above the counter surface, transform a functional fixture into a design focal point.
The standard vanity counter height ranges from 34 to 36 inches. When you add a vessel basin, which typically adds 4 to 6 inches above the counter, the finished rim height reaches 38 to 42 inches—too tall for comfortable use. To correct this, lower the counter height to between 28 and 30 inches so that the finished rim aligns with the standard height of 34 to 36 inches.
Taller faucets are necessary to ensure they clear the basin rim. Alternatively, wall-mounted faucets can eliminate this issue and simplify counter cleaning. The area where the basin meets the counter surface tends to collect water and residue, so it is advisable to choose basins with a flat, wide base or integrated drain trays to minimize maintenance.
When it comes to mirror placement above vessel sinks, follow the same center-line guideline: position the mirror center at a height of 57 to 62 inches from the floor.

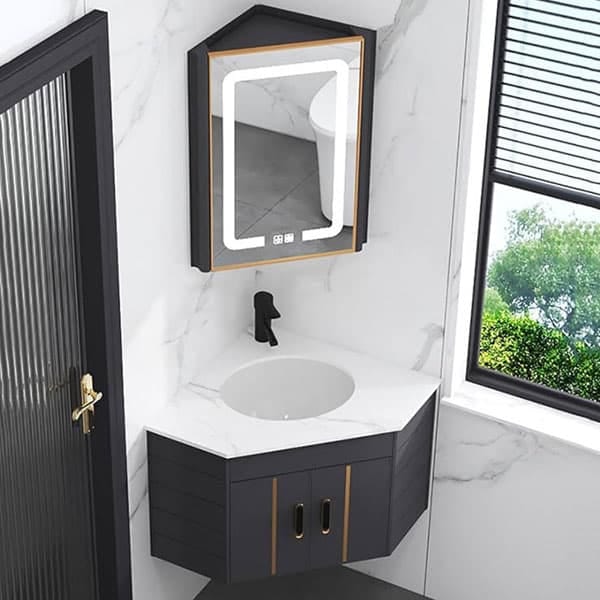

Corner Vanities
Every floor plan has corners that can lead to wasted square footage. Corner vanities transform this unused space into functional wash stations, making them ideal for small hotel bathrooms, and retrofit projects where relocating plumbing is not feasible within the budget.
There are some limitations to consider. The size of the sink is restricted by the triangular or angled cabinet footprint, which can make access feel awkward. When existing plumbing is located in a corner and the budget does not allow for relocation, a corner vanity is often the most cost-effective choice.
For mirror pairing, consider using corner-mounted mirror cabinets to effectively utilize corner space for additional storage.

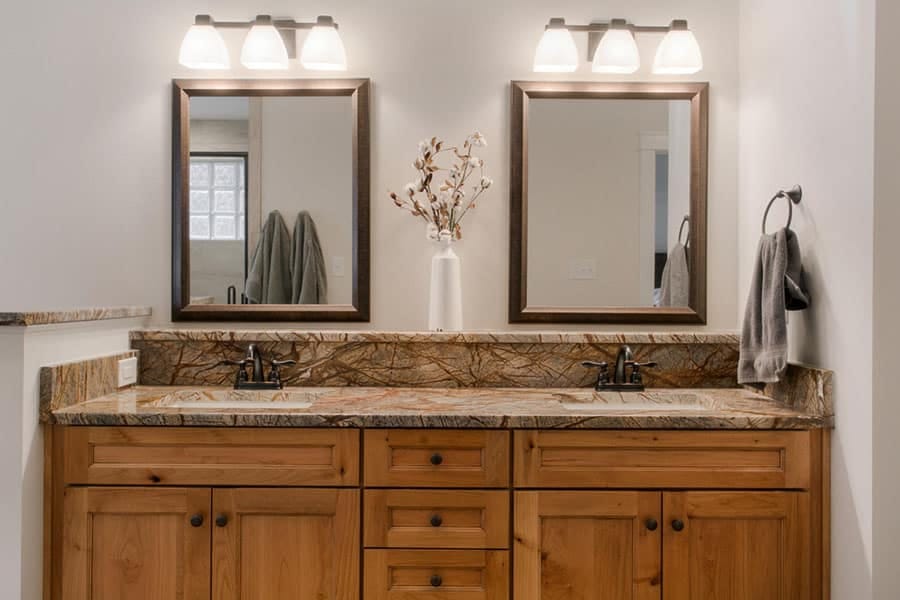

Single VS Double Sink Vanities
The decision between a single or double sink vanity is not a matter of luxury; it primarily depends on usage patterns, plumbing budget, and room dimensions.
Double sink vanities require a width of 60 to 72 inches and significantly more plumbing infrastructure, including two drain lines, four supply lines, and a wider waste arm. The additional costs for materials and installation labor are considerable. Double sinks should only be specified where simultaneous use is truly necessary, such as in hotel family suites, executive rooms, or primary bathrooms in multi-family residences.
In contrast, single sink vanities are suitable for the vast majority of situations. They typically fit widths of 24 to 48 inches, simplify plumbing, and lower overall costs. For standard hotel rooms, single-sink freestanding vanities with 50,000-cycle hardware provide the best combination of durability, storage, and budget efficiency.
The mirror configuration varies significantly between these two types of vanities. Single vanities typically use one mirror that is 2 to 4 inches narrower than the vanity itself. Double vanities offer more options: you can choose either two individual mirrors centered over each basin or one wide mirror that spans the entire width of the vanity. A single wide mirror for double sink vanities creates a more expansive visual effect, simplifies procurement, and reduces the installation process.

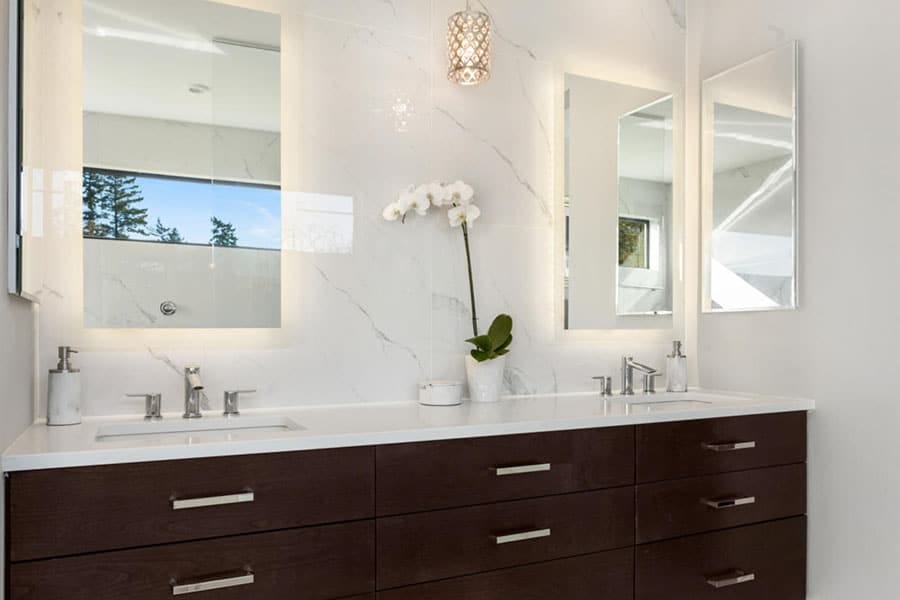

Undermount Sink Vanities
Undermount sinks are installed below the countertop surface, rather than dropping in from above. This design creates a seamless edge with no lip or rim where water, soap residue, or debris can accumulate. As a result, cleaning time is reduced, and there are fewer maintenance complaints in high-turnover commercial environments.
The type of countertop material determines whether an undermount installation is possible. Quartz, granite, and solid surface materials can accommodate undermount sinks, while laminate cannot. Exposed edges of laminate will absorb moisture and may delaminate within months if exposed to water. Therefore, it is essential to specify stone or engineered stone countertops for every undermount vanity in commercial projects.
Undermount sink cutouts require precise fabrication. The sink must be measured and the countertop cut to match the sink opening before installation. This means that countertops and sinks must be ordered together and templated on-site. Delaying sink substitutions after the countertop has been fabricated can be costly. It’s crucial to finalize the sink specifications early and document the cutout dimensions in the procurement package.
For mirror pairing, it’s best to match the mirror width to the entire countertop span, rather than just the cabinet below.

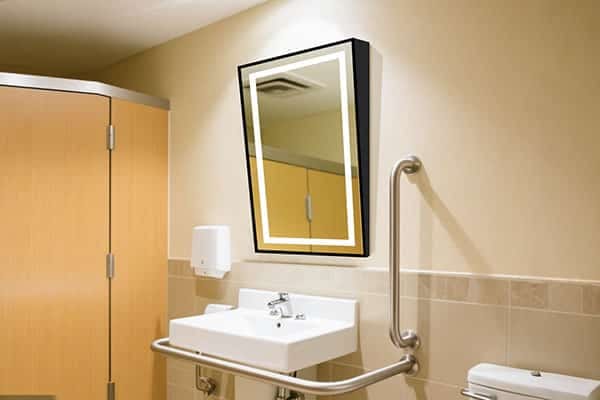

ADA-Compliant Vanities
In commercial projects, ensuring at least one ADA-compliant vanity is mandatory. The following dimensions of information will help your facility comply with ADA requirements:
- Counter Height: The maximum height from the finished floor to the top of the counter surface should be 34 inches.
- Knee Clearance beneath the Vanity: A minimum height of 27 inches, a minimum width of 30 inches, and a depth ranging from 17 to 25 inches are required. This area must remain clear of obstructions, including plumbing.
Additionally, water supply and drainage pipes within the knee clearance zone must be either insulated or enclosed to prevent contact burns. It is also important that no sharp or abrasive surfaces are present, as this requirement often surprises specifiers during inspections.
When it comes to mirror mounting, ADA-compliant mirrors are required.
ADA guidelines state that the bottom of the mirror must be no higher than 40 inches from the finished floor. For children’s facilities catering to ages 6 to 12, the maximum vanity height should be reduced to 31 inches.
Floating vanities and console sinks are ideal for ADA compliance because their open bases naturally provide the necessary knee clearance. In contrast, freestanding vanities need modifications to be open-front or roll-under in order to meet accessibility standards.
Choose LED Mirror to Match Vanity
The mirror is the most prominent feature above any vanity; however, it is often treated as an afterthought by people. This oversight can lead to misaligned proportions, inadequate lighting, and costly rework.
A fundamental sizing guideline applies to all bathroom vanities: the width of the mirror should be 2 to 4 inches narrower than the vanity itself.
For optimal eye-level alignment, mount the mirror 57 to 62 inches from the floor. Additionally, maintain a distance of 4 to 8 inches between the bottom edge of the mirror and the backsplash to prevent splashes and facilitate cleaning.
Side-mounted sconces should be placed 60 to 65 inches from the floor. This arrangement effectively reduces the under-eye shadows created by overhead-only lighting. Overhead lighting fixtures should be positioned 75 to 80 inches from the floor or 6 to 8 inches above the mirror.
For warm and flattering light, choose a color temperature between 2700K and 3000K, delivering 400 to 800 lumens per fixture.
In hospitality and spa projects, consider using anti-fog LED mirrors, which are integrated with demister pads. These mirrors keep the surface clear after hot showers by slightly raising the glass temperature above the dew point. When combined with integrated LED lighting, these mirrors eliminate the need for separate sconces and overhead lighting fixtures, reducing the overall fixture count and simplifying the electrical setup.
Also Read: LED 101
Choose Vanities for Hospitality and Commercial Projects
When choosing vanity types, consider the room type. Powder rooms and small restrooms are best suited for pedestal or console sinks. Guest bathrooms typically perform well with freestanding single-sink vanities, while primary bathrooms and suites benefit from double-sink configurations. Accessible rooms require floating or open-front vanities that meet verified knee clearance requirements.
Quartz and solid surface countertops resist stains and scratches more effectively than laminate, making them ideal for high-traffic commercial environments. The standard vanity depth ranges from 18 to 24 inches, with a recommended clearance of 21 inches in front, as per ICC/ANSI A117.1 standards.
For coordinating mirrors and vanities across large projects, please contact our team to discuss bulk LED mirror specifications that align with your selected vanities.
